Adjustable Tip Spacing Pipetting Station
Multi-channel pipetting with freely adjustable spacing — for every vessel format on your bench.
Spin-4: Starting at $8000
4
Channel Pitch
Labpreper is an adjustable tip spacing multi-channel pipetting station designed for labs that routinely work across multiple vessel formats.

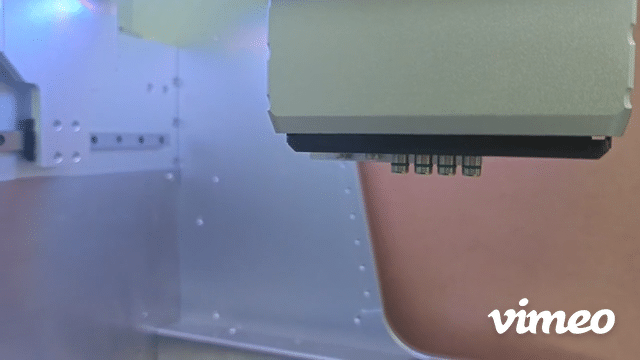

Software-Controlled Adjustable Tip Spacing
Adjust spacing from 4.5 mm to 33 mm to match any vessel format on your bench. Tip spacing is fully programmable via software, enabling precise positioning across multiple vessel formats without manual adjustment.

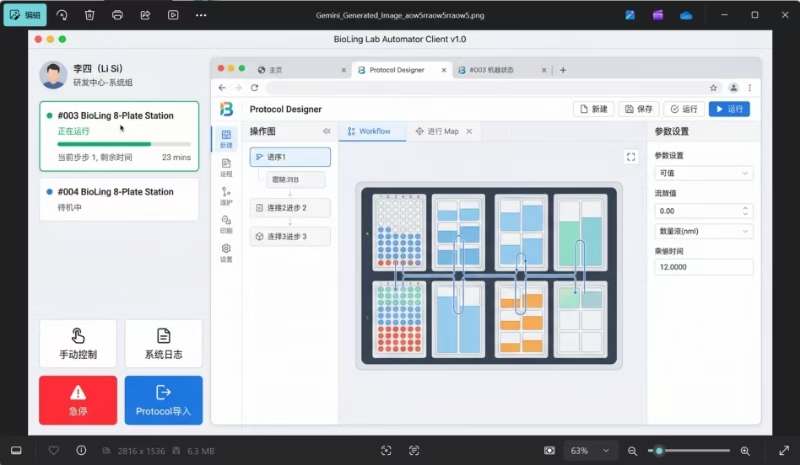

Format Switching Logic
Predefine source and destination formats in the system software for rapid and repeatable switching during high-throughput workflows.
Autoclavable Lower Module
The lower liquid-handling section is fully autoclavable, supporting sterile workflows in cell-based and sensitive biological applications.

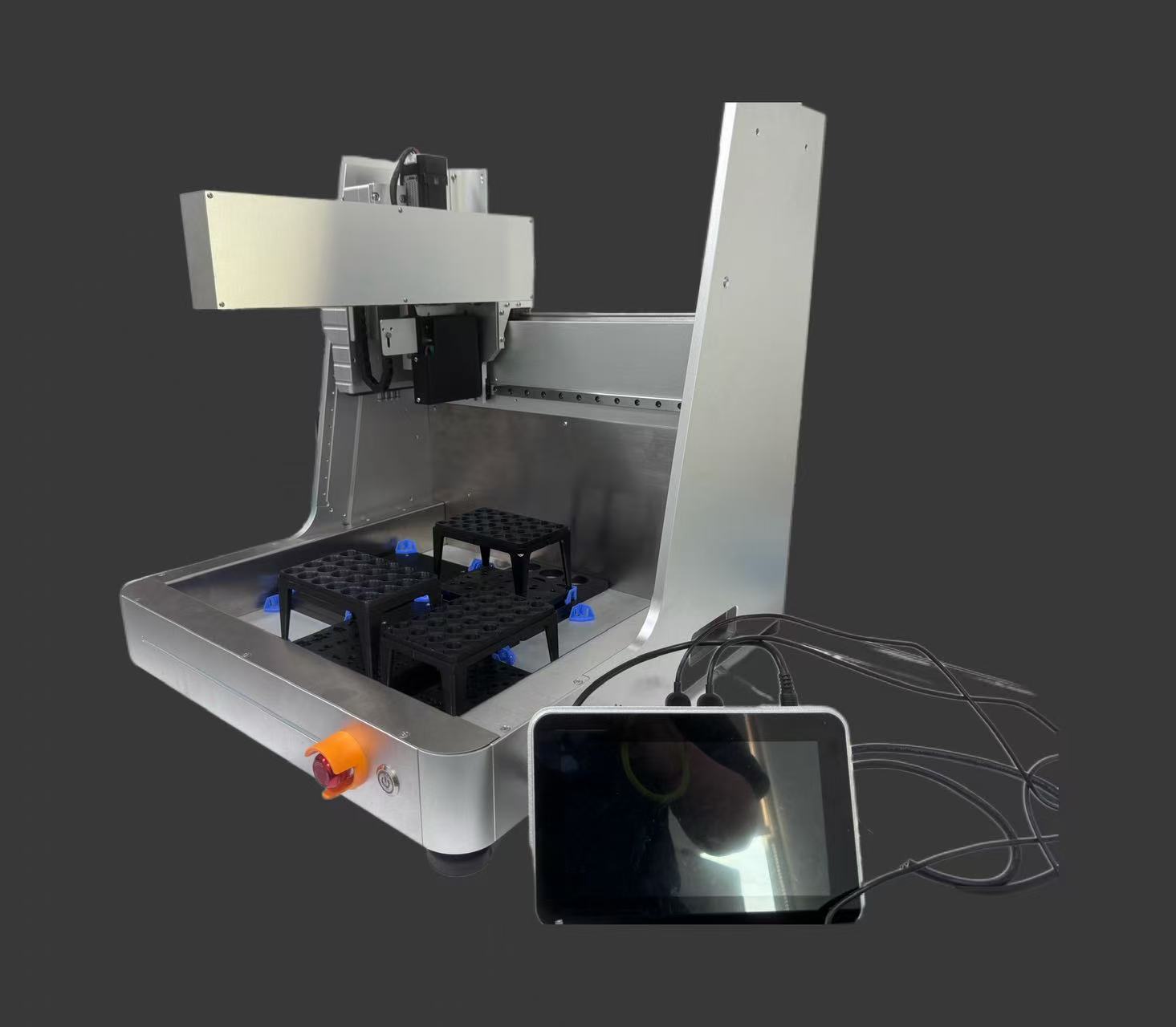

Optional Integrated Display Module
A digital display module is available as an option for real-time programming.
Spin-4 Specification
| Specification | Detail |
|---|---|
| Pipetting principle | Air cushion |
| Number of channels | 4, 6, 8, or 12 |
| Adjustable tip spacing | 9 – 30 mm |
| Volume range | 0.5 – 10 µL, 5 – 100 µL, 10 – 300 µL |
| Volume adjustment | Continuous, mechanical rotary dial / electronic |
| Tip compatibility | Standard Labpreper tips; universal tip adapters |
| Autoclavability | Lower part |
| Operating temperature | 15 – 40°C |
| Calibration | User-adjustable; ISO 8655 compliant |
| Dimensions (approx.) | 50*50*50 cm |
| Weight (approx.) | 30kg |
